The most complete stove.

Classic appearance with the most modern technology

A Steel Ascot induction stove is characterized by its classic appearance, but don't be fooled. This stove has an electric combi-steam oven as standard that can reach temperatures up to 315ºC. The powerful induction plate has 5 zones, 2 of which are flex zones and the oven has a proofing & cleaning function.

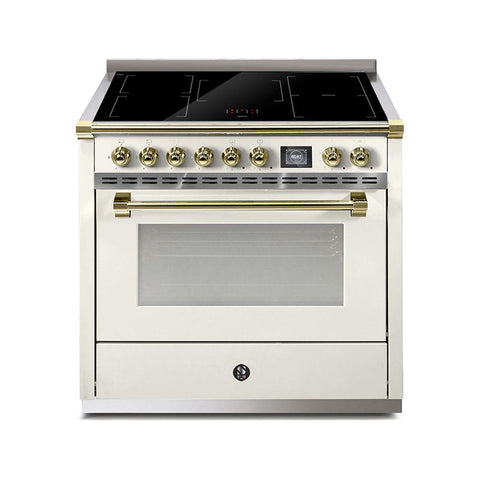

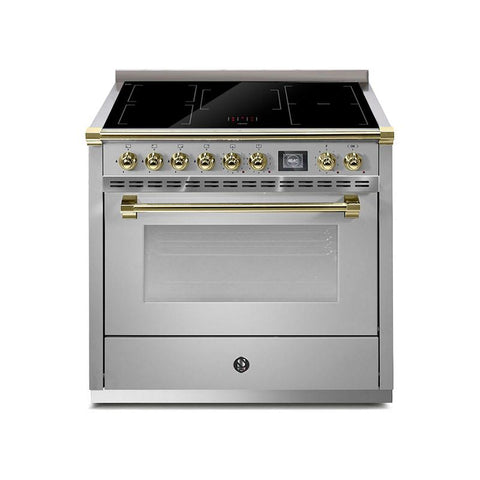

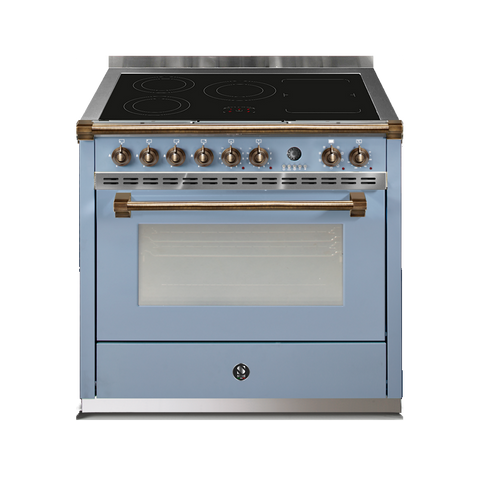

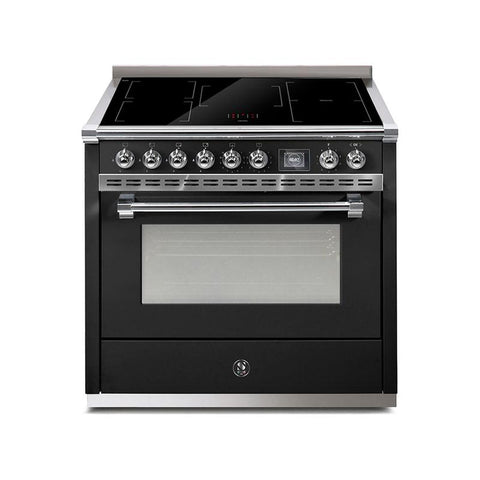

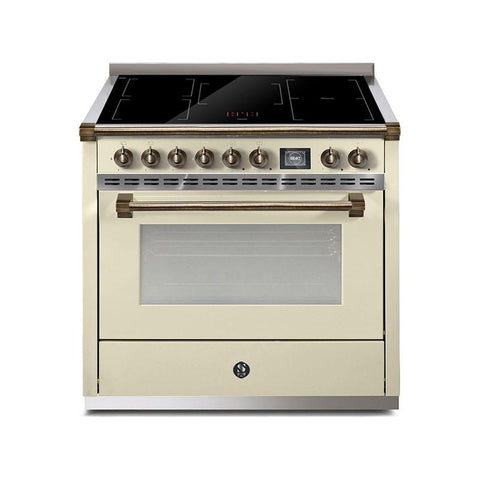

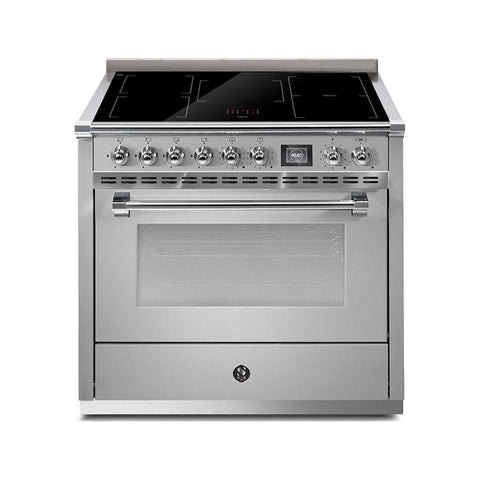

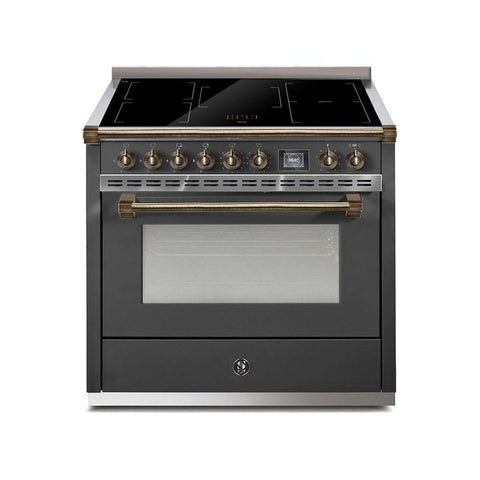

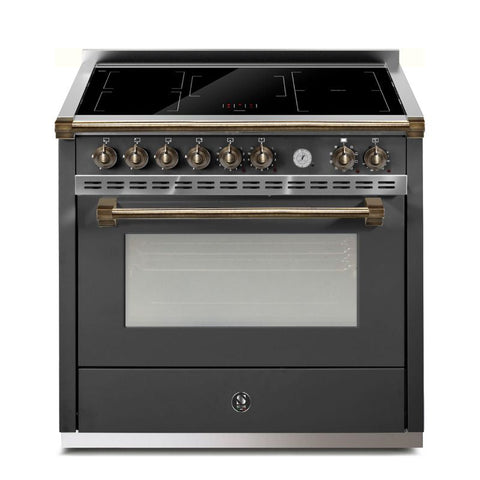

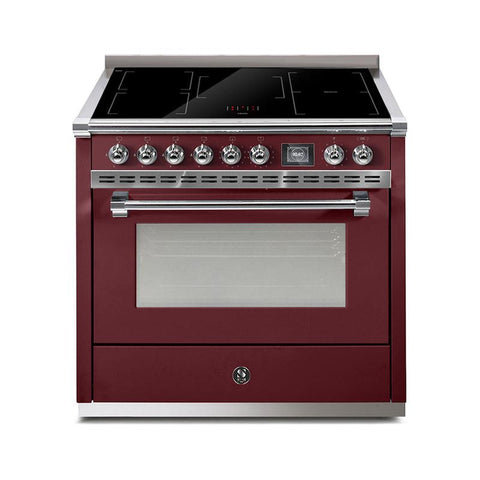

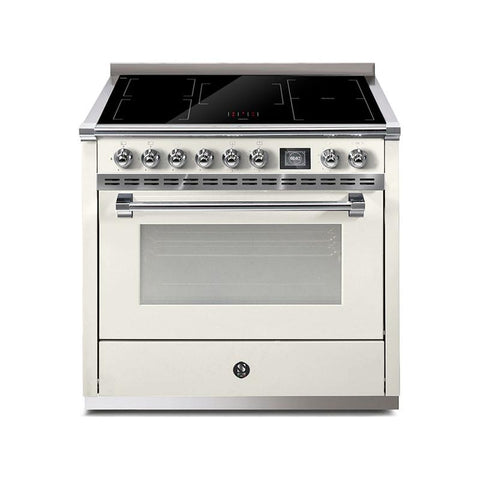

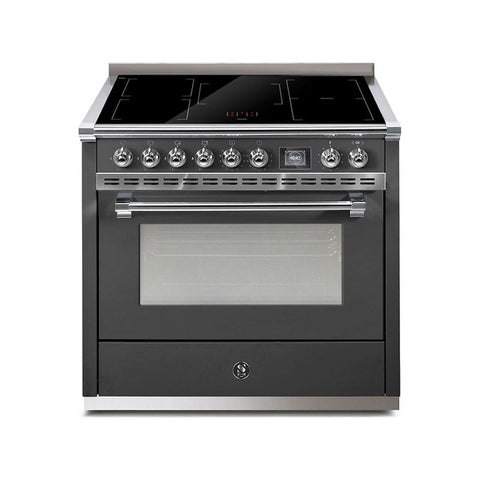

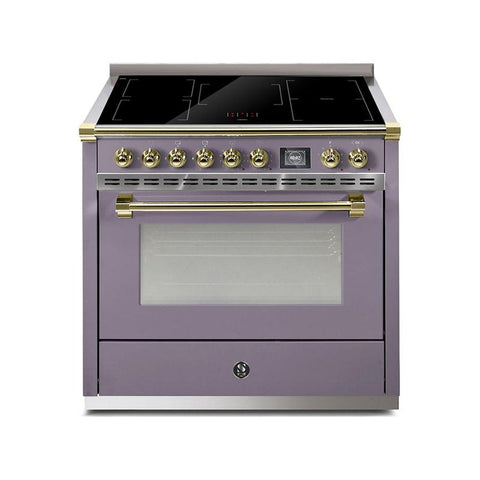

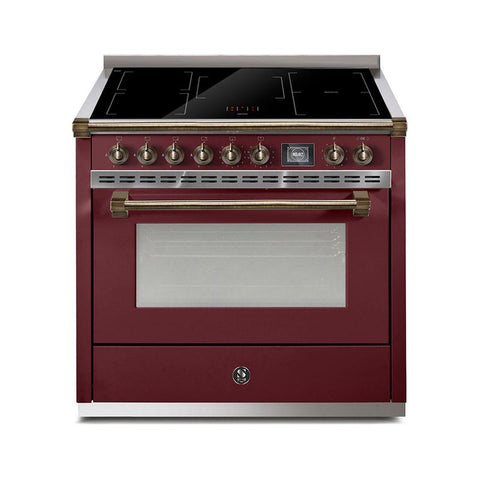

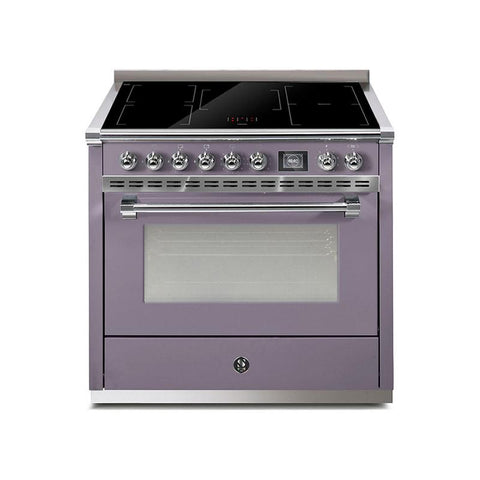

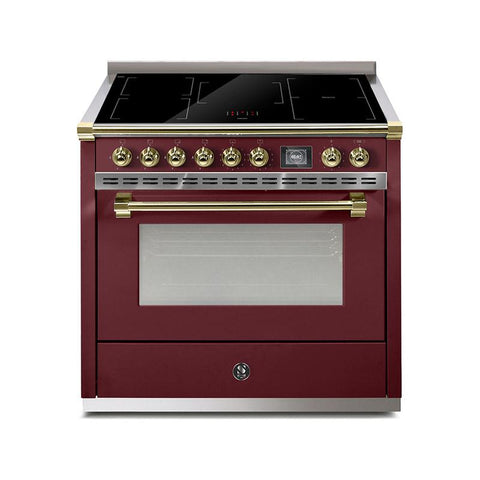

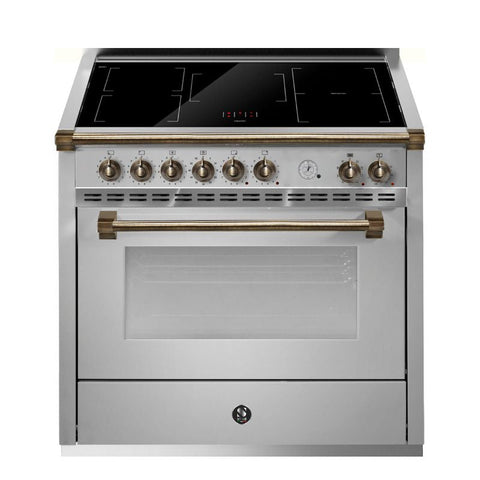

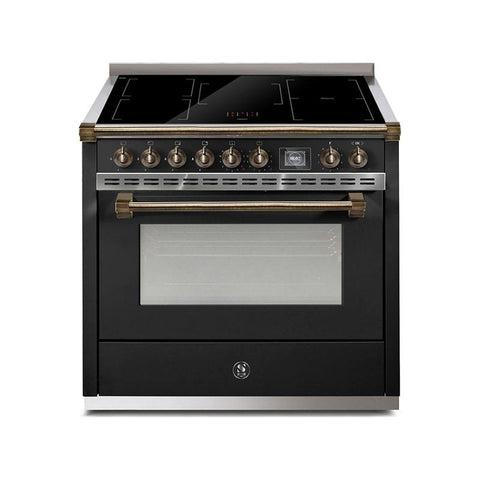

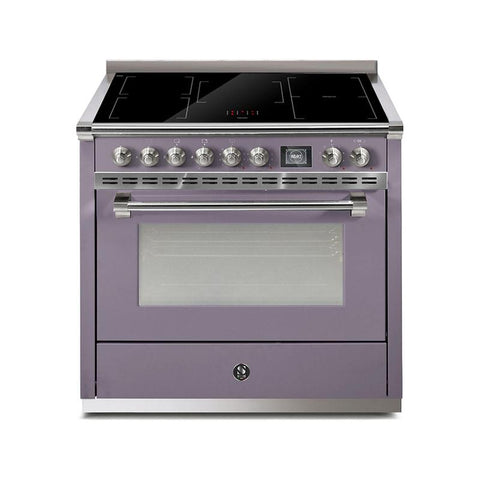

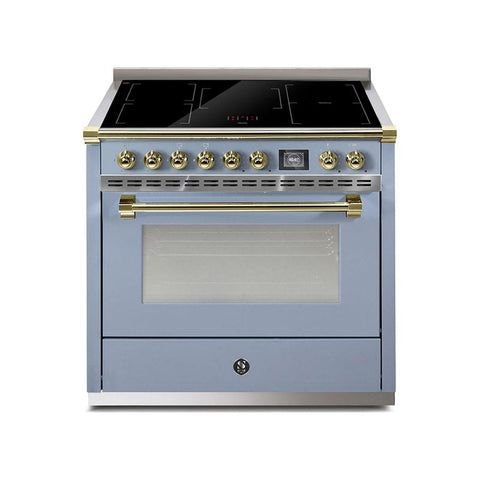

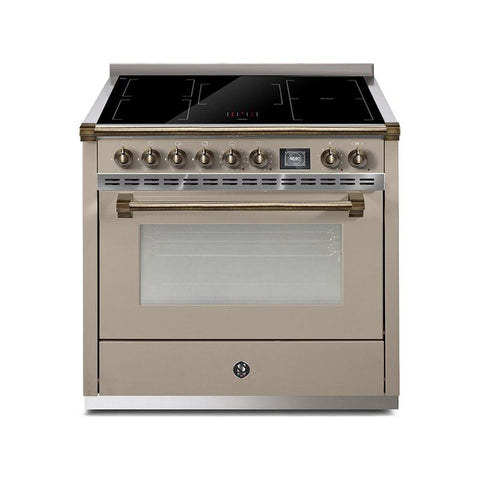

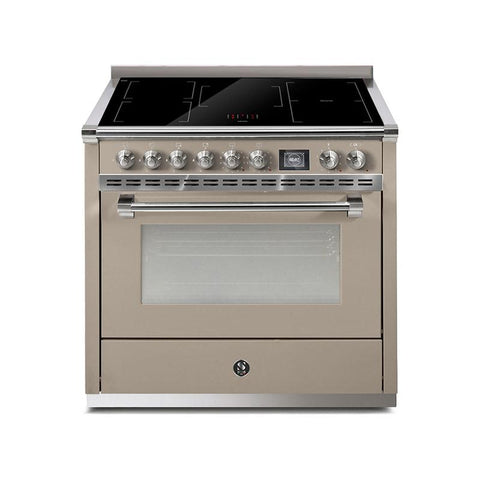

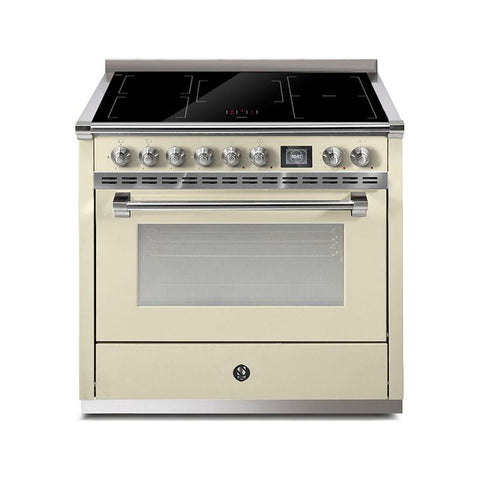

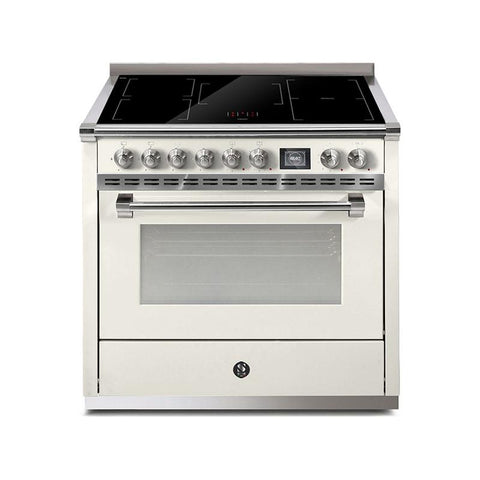

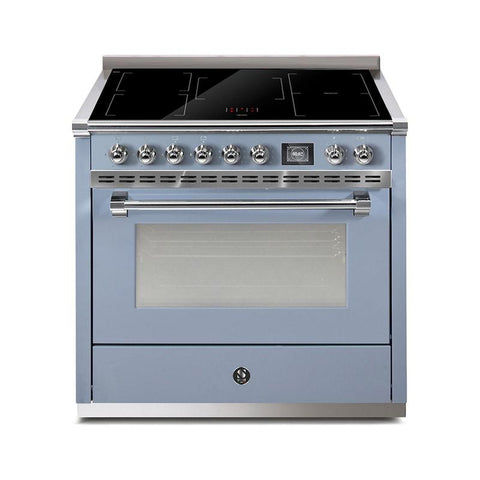

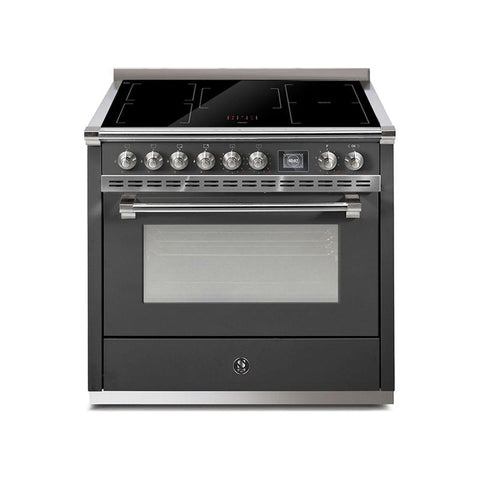

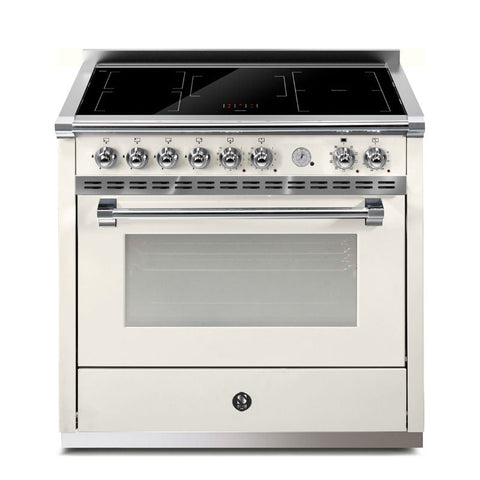

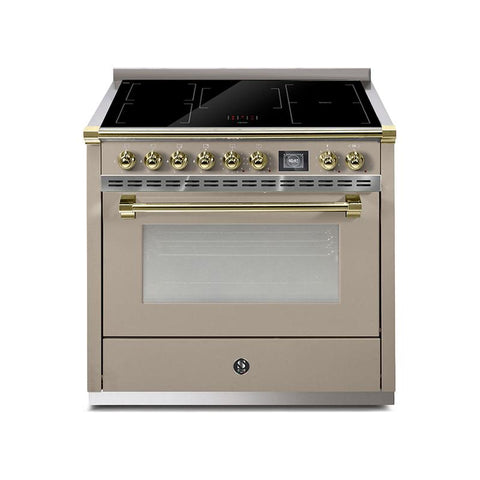

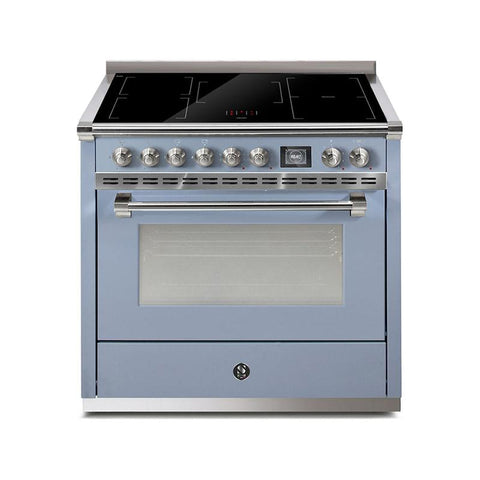

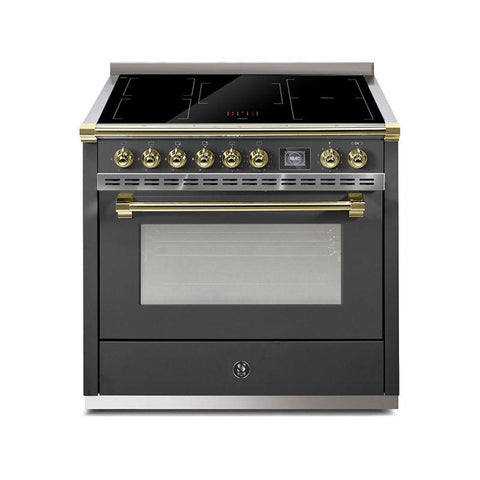

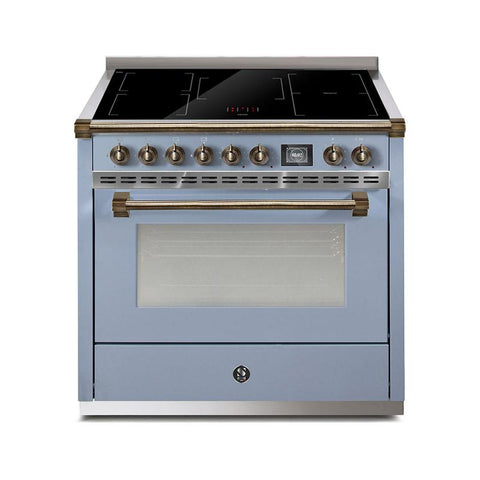

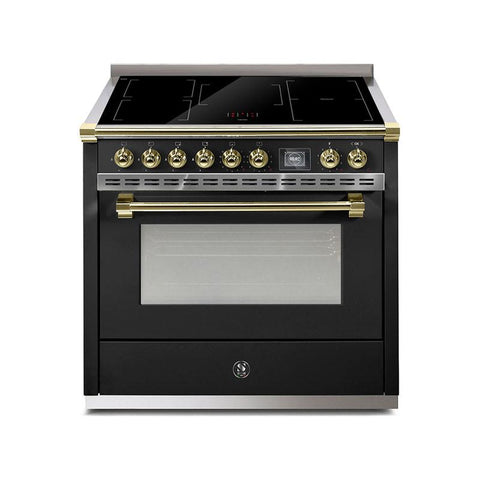

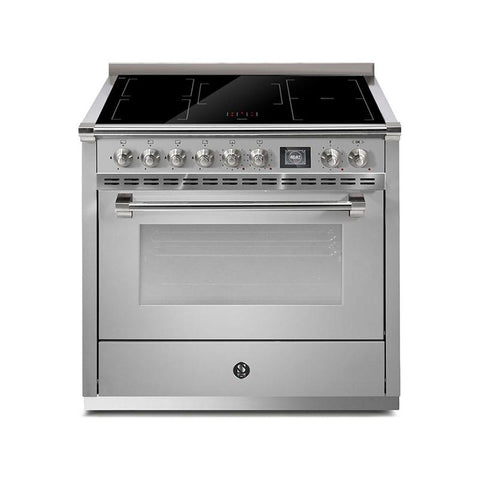

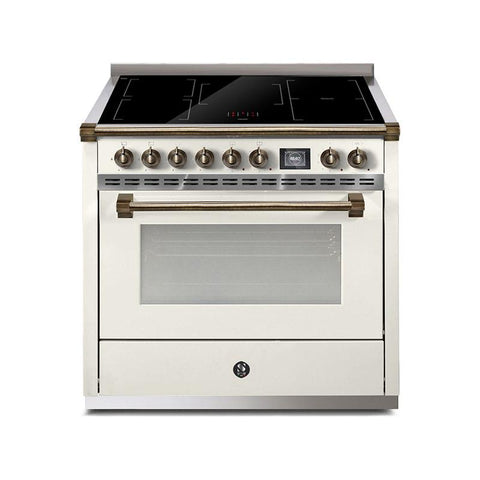

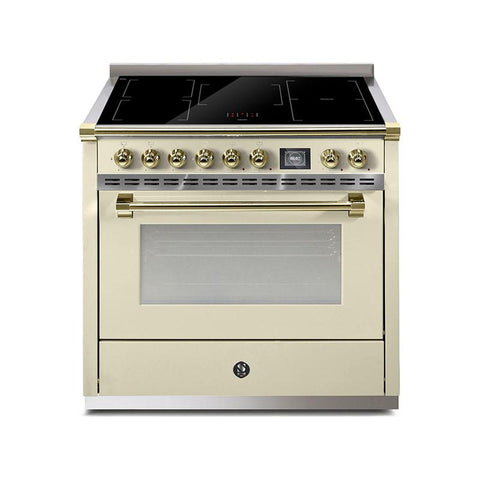

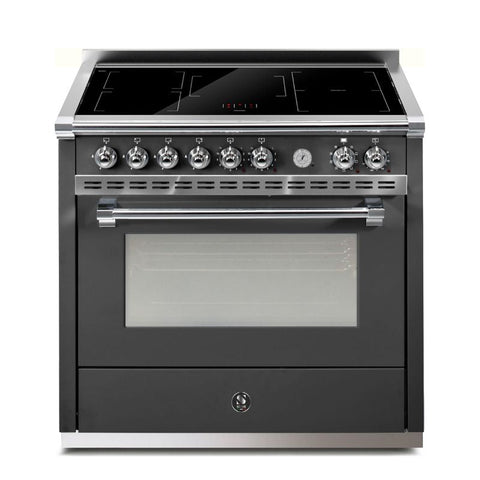

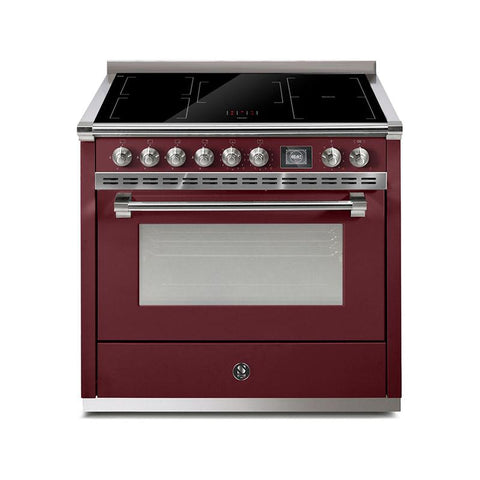

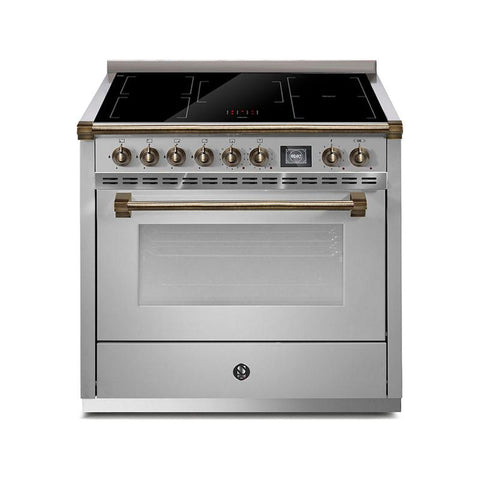

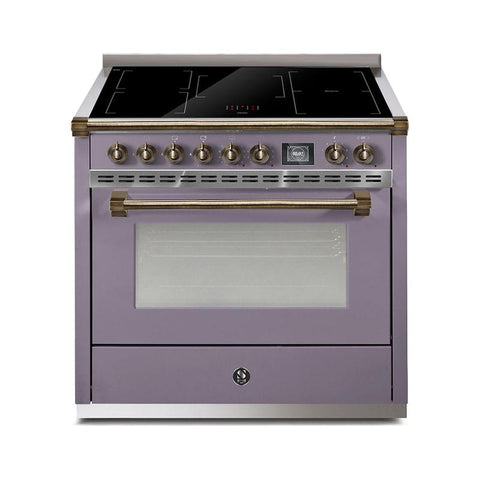

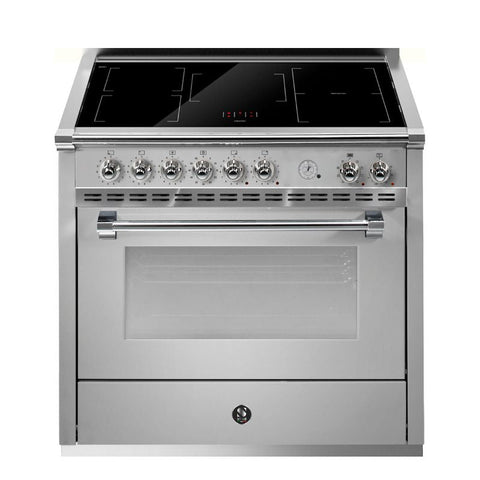

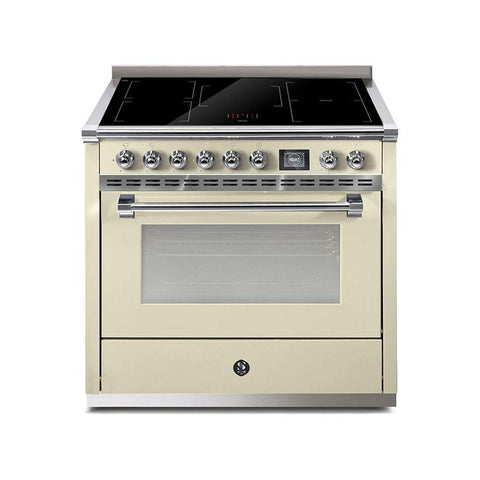

This stove is available in different colors and finishes. The basic color is stainless steel with a chrome finish.

.

View the legend of the oven functions

Technical description

Download the dimensions of this stove (The drawing shows the gas hob. The dimensions for induction are the same, but with a flat top.)

Download the dirt stove user manual here.

Brand	Steal Cucine
Type	Ascot 90 induction
Fashion model	AQ9S-5FI
Colour	Stainless steel/anthracite
External dimensions (hxwxd)	900-920x899x599-625 mm.* up to 97 cm with heightening set that can be ordered separately.
Width	90 cm
Gas
Induction	✔
Number of gas burners	N/A
Power wok burners	N/A
Number of zones induction	5
Number of flex zones	2
Height-adjustable stove	✔
Energy class	a
Oven	1
Bottom heat	✔
Top heat	✔
Hot air with top and bottom heat	✔
Concentrative with top and bottom heat	✔
Hot air with grill	✔
Hot air with convex element	✔
Defrost	✔
Large surface grill with rotisserie spit	✔
Steam oven	✔
Contents of oven	91 L
Internal oven dimensions (hxwxd)	430x610x330mm
Location of gas connection	❌
Electrical connection value	11 kW
CE quality mark	✔
Installation	Would you like to know how to connect your steel stove? View the connection help here. If you have any questions, we are happy to help you. Note 3 phases!

Steel Stove Ascot 90 - Induction Stove | AQ9S-5FI | Model 2023
